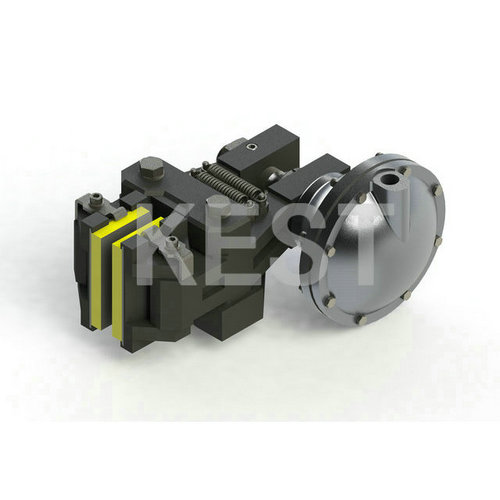

技術數據
制動力F：
KB4-1 1600 N 6bar
KB4-2 3800 N 6bar
KB4-3 7500 N 6bar
KB4-4 12700 N 6bar
動態力矩
=F*[制動盤半徑-0.033]=Nm
**總磨損：12 mm
新摩擦片厚度：11 mm
持續滑動時的熱容量Qc: 3.4 kW
Technical data
Braking force F:
KB4-1 1600 N at 6 bar
KB4-2 3800 N at 6 bar
KB4-3 7500 N at 6 bar
KB4-4 12700 N at 6 bar
Dynamic torque
= F*(disc radius in m - 0.033) = Nm
Max total wear: 12 mm
Thickness of new lining: 11 mm
Continuous thermal capacity Qc: 3.4 kW
技術數據
制動力F：
KBS4-1 2625 N
KBS4-2 5250 N
KBS4-3 10400 N
動態力矩
=F*[制動盤半徑-0.033]=Nm
**總磨損： 12 mm
新摩擦片厚度： 11 mm
持續滑動時的熱容量Qc: 3.4 kW
松鉗**小氣壓： 5 bar
圖表顯示數據依據如下條件:
4-1裝有4根彈簧
4-2和4-3裝有8根彈簧
若要減少力矩值可相應地減少彈簧數量：
4-1 2根彈簧
4-2和4-3 6、4、2彈簧
圖表指示了每毫米摩擦片磨損的力矩變化情況。
如需恢復到相應額定力矩，請按照使用手冊說明進行調整。
Technical data
Braking force F:
KBS4-1 2625 N
KBS4-2 5250 N
KBS4-3 10400 N
Dynamic torque
= F*(disc radius in m - 0.033) = Nm
Max total wear: 12 mm
Thickness of new lining: 11 mm
Continuous thermal capacity Qc: 3.4 kW
Minimum release pressure: 5 bar
The torque values specified
are obtained with n. 4 springs for 4-1,
n. 8 springs for 4-2 and 4-3.
Torque proportionally less
are achievable with n. 2 springs for 4-1,
n. 6-4-2 springs for 4-2 and 4-3.
The diagram shows the torque
variation for each millimeter
of linings wear.
Adjust according to ensure the
correct torque value is achieved.
